0009652098

Affinity Medical Technologies - a Molex company

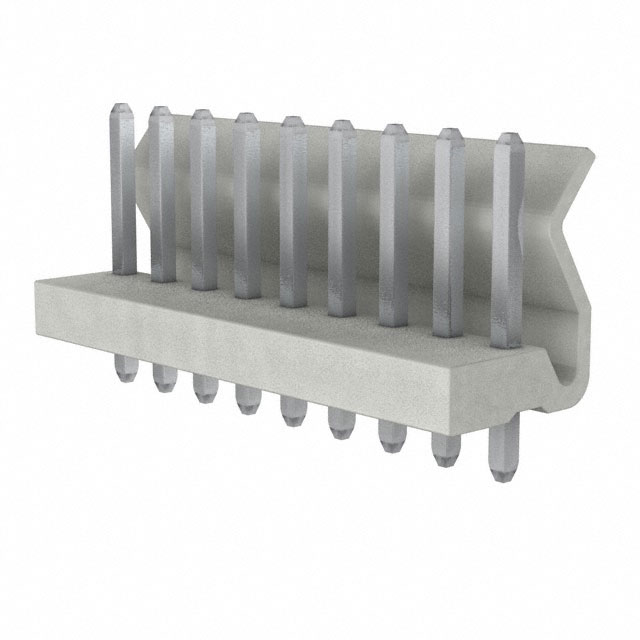

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009652098
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS 3.96MM VERT PCB
Datasheets:	0009652098.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80113 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 80113 pcs

Reference Price (In US Dollars)

1 pcs: $0.441

10 pcs: $0.389

100 pcs: $0.335

500 pcs: $0.274

1000 pcs: $0.244

5000 pcs: $0.213

10000 pcs: $0.203

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.441

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009652098

Part Number	0009652098	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS 3.96MM VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80113 pcs	Data sheet	0009652098.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 5273	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.687" (17.45mm)	Other Names	0009-65-2098 000965-2098 0009652098-ND 09-65-2098 09652098 5273-09A WM13090
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.482" (12.25mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 9 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.419" (10.65mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
