ATS-PCB1074

Advanced Thermal Solutions, Inc.

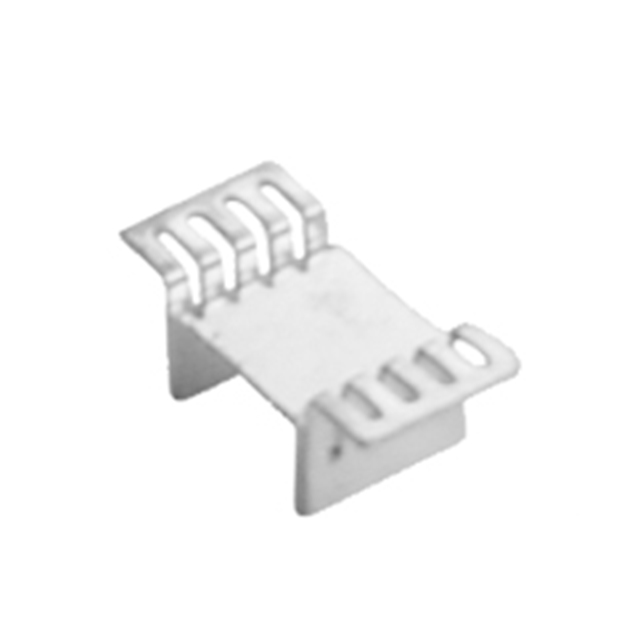

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATS-PCB1074
Manufacturer/Brand:	Advanced Thermal Solutions, Inc.
Product description	HEATSINK TO-263 COPPER
Datasheets:	ATS-PCB1074.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	188556 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 188556 pcs

Reference Price (In US Dollars)

250 pcs: $0.186

500 pcs: $0.175

1250 pcs: $0.159

6250 pcs: $0.153

12500 pcs: $0.142

25000 pcs: $0.14

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.186

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATS-PCB1074

Part Number	ATS-PCB1074	Manufacturer	Advanced Thermal Solutions, Inc.
Description	HEATSINK TO-263 COPPER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	188556 pcs	Data sheet	ATS-PCB1074.pdf
Width	1.031" (26.20mm)	Type	Top Mount
Thermal Resistance @ Natural	18.00°C/W	Thermal Resistance @ Forced Air Flow	9.50°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-263 (D²Pak)
Other Names	ATS2116 ATS2116-ND ATS2116TR	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Tin	Material	Copper
Manufacturer Standard Lead Time	6 Weeks	Length	0.500" (12.70mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.401" (10.20mm)
Diameter	-	Detailed Description	Heat Sink TO-263 (D²Pak) Copper Top Mount
Attachment Method	-
