ATS-PCB1069

Advanced Thermal Solutions, Inc.

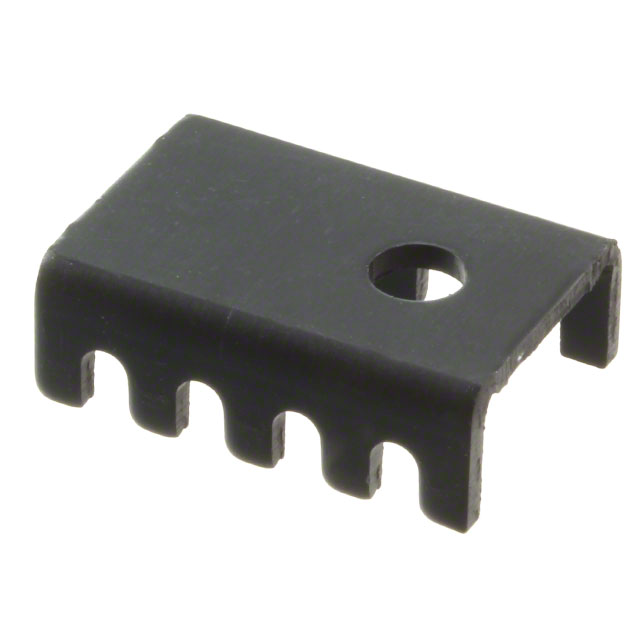

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATS-PCB1069
Manufacturer/Brand:	Advanced Thermal Solutions, Inc.
Product description	HEATSINK TO-220 BLACK
Datasheets:	ATS-PCB1069.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	291063 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 291063 pcs

Reference Price (In US Dollars)

1 pcs: $0.108

10 pcs: $0.102

25 pcs: $0.097

50 pcs: $0.095

100 pcs: $0.093

250 pcs: $0.087

500 pcs: $0.082

1000 pcs: $0.074

5000 pcs: $0.072

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.108

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATS-PCB1069

Part Number	ATS-PCB1069	Manufacturer	Advanced Thermal Solutions, Inc.
Description	HEATSINK TO-220 BLACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	291063 pcs	Data sheet	ATS-PCB1069.pdf
Width	0.520" (13.21mm)	Type	Board Level
Thermal Resistance @ Natural	32.00°C/W	Thermal Resistance @ Forced Air Flow	15.80°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-220
Other Names	ATS2111	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	6 Weeks	Length	0.750" (19.05mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.250" (6.35mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Aluminum Board Level
Attachment Method	Bolt On
