209257016001013

AVX Corporation

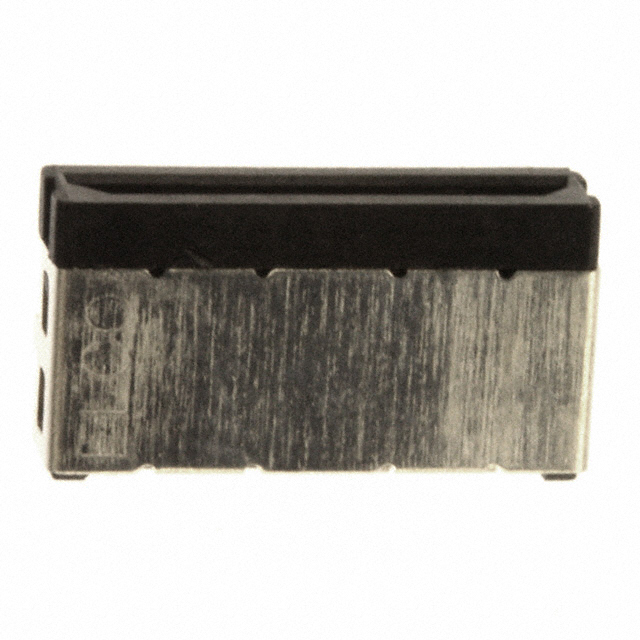

Image may be representation. See specifications for product details.

Product Overview

Part Number:	209257016001013
Manufacturer/Brand:	AVX Corporation
Product description	CONN RECEPTACLE 16 POS SMD
Datasheets:	209257016001013.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36654 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36654 pcs

Reference Price (In US Dollars)

1100 pcs: $1.011

2200 pcs: $0.976

3300 pcs: $0.941

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.011

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 209257016001013

Part Number	209257016001013	Manufacturer	AVX Corporation
Description	CONN RECEPTACLE 16 POS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36654 pcs	Data sheet	209257016001013.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Cable/Wire	Series	9257
Row Spacing - Mating	-	Pitch - Mating	0.049" (1.25mm)
Packaging	Tape & Reel (TR)	Other Names	209257016001013-ND 478-4514-2
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.118" (3.00mm)
Insulation Color	-	Ingress Protection	-
Features	Board Guide, Shielded, Solder Retention	Fastening Type	Friction Lock
Detailed Description	16 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold	Current Rating	1A per Contact
Contact Type	Female Blade Socket	Contact Shape	-
Contact Material	Beryllium Copper	Contact Length - Post	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	31.5µin (0.80µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	General Purpose, Industrial, Medical, Telecommunications
