AVX Corporation

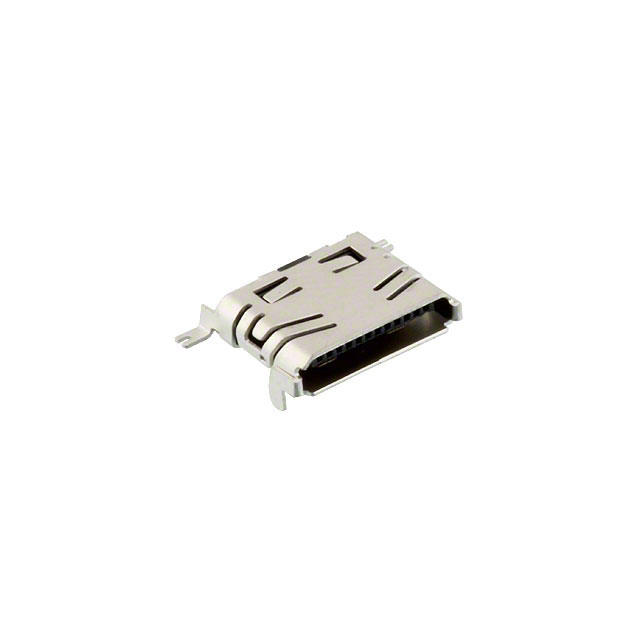

| Part Number | 209257012101016 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN RECEPTACLE 12 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122127 pcs | Data sheet | 209257012101016.pdf |
| Voltage Rating | 50VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | 9257 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Other Names | 209257012101006 478-5479-2 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Shielded, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 12 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold | Current Rating | 0.5A per Contact |
| Contact Type | Female Blade Socket | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Medical, Telecommunications |
