AMI Semiconductor / ON Semiconductor

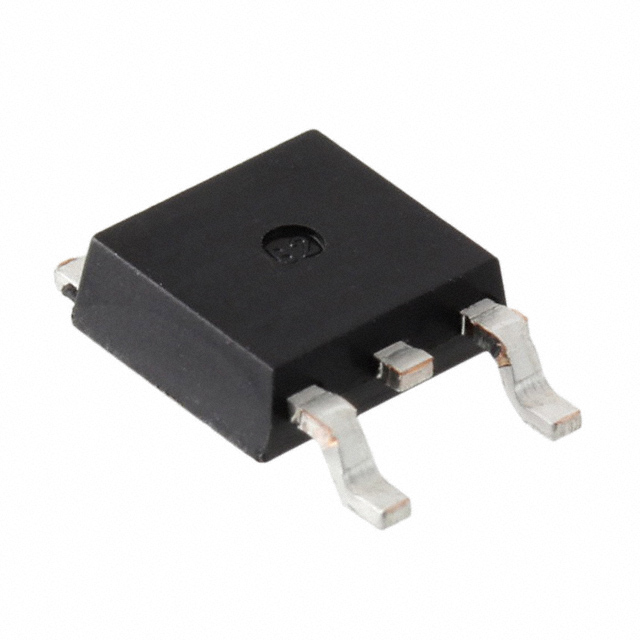

| Part Number | FQD2N60CTM-WS | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 600V 1.9A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74703 pcs | Data sheet | FQD2N60CTM-WS.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | D-Pak |
| Series | QFET® | Rds On (Max) @ Id, Vgs | 4.7 Ohm @ 950mA, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 44W (Tc) | Packaging | Original-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | FQD2N60CTM-WSDKR FQD2N60CTM_WSDKR FQD2N60CTM_WSDKR-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 235pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 1.9A (Tc) 2.5W (Ta), 44W (Tc) Surface Mount D-Pak |
| Current - Continuous Drain (Id) @ 25°C | 1.9A (Tc) |
