FDMD8680

AMI Semiconductor / ON Semiconductor

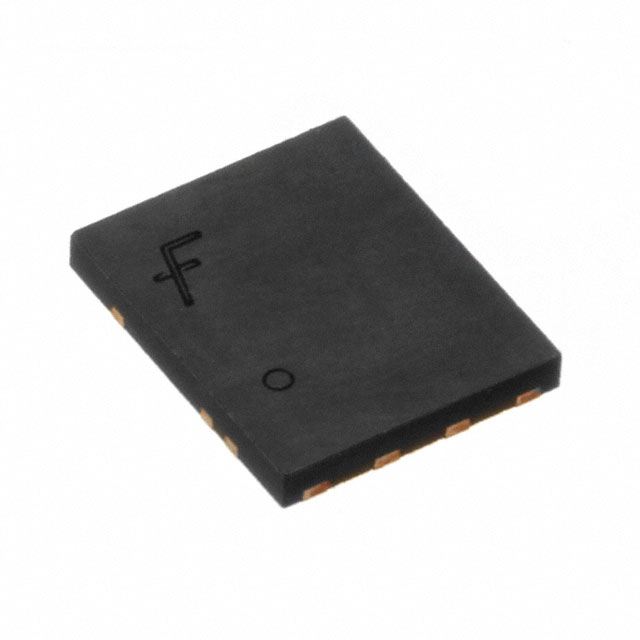

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDMD8680
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET 2 N-CH 80V 66A 8-PQFN
Datasheets:	FDMD8680.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	94038 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 94038 pcs

Reference Price (In US Dollars)

3000 pcs: $0.37

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.37

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDMD8680

Part Number	FDMD8680	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET 2 N-CH 80V 66A 8-PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	94038 pcs	Data sheet	FDMD8680.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Supplier Device Package	8-PQFN (5x6)
Series	-	Rds On (Max) @ Id, Vgs	4.7 mOhm @ 16A, 10V
Power - Max	39W	Packaging	Tape & Reel (TR)
Package / Case	8-PowerWDFN	Other Names	FDMD8680-ND FDMD8680OSTR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	39 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	5330pF @ 40V
Gate Charge (Qg) (Max) @ Vgs	73nC @ 10V	FET Type	2 N-Channel (Dual)
FET Feature	Standard	Drain to Source Voltage (Vdss)	80V
Detailed Description	Mosfet Array 2 N-Channel (Dual) 80V 66A (Tc) 39W Surface Mount 8-PQFN (5x6)	Current - Continuous Drain (Id) @ 25°C	66A (Tc)
