FDMD8560L

AMI Semiconductor / ON Semiconductor

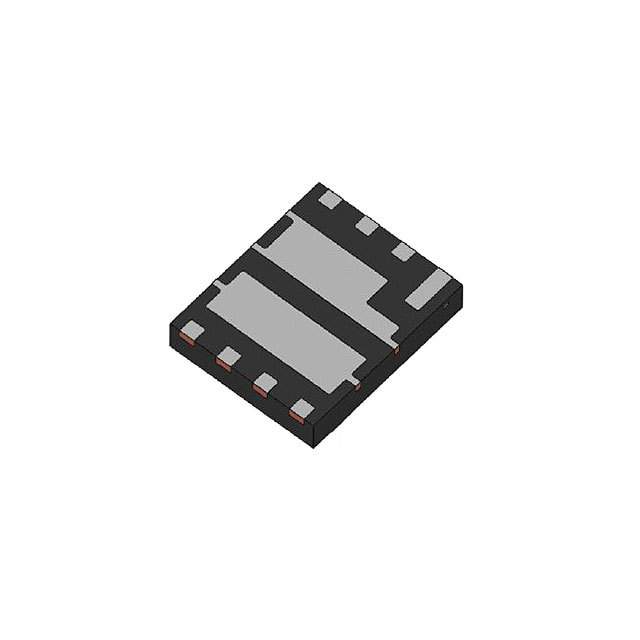

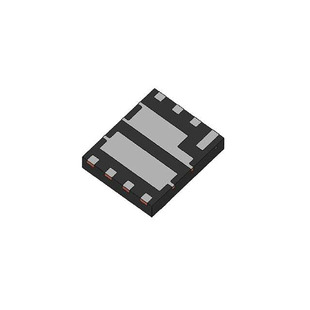

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDMD8560L
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET 2N-CH 46V 22A POWER
Datasheets:	FDMD8560L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45358 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45358 pcs

Reference Price (In US Dollars)

3000 pcs: $0.667

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.667

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDMD8560L

Part Number	FDMD8560L	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET 2N-CH 46V 22A POWER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45358 pcs	Data sheet	FDMD8560L.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Supplier Device Package	8-Power 5x6
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	3.2 mOhm @ 22A, 10V
Power - Max	2.2W	Packaging	Tape & Reel (TR)
Package / Case	8-PowerWDFN	Other Names	FDMD8560LTR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	39 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	11130pF @ 30V
Gate Charge (Qg) (Max) @ Vgs	128nC @ 10V	FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard	Drain to Source Voltage (Vdss)	60V
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 60V 22A, 93A 2.2W Surface Mount 8-Power 5x6	Current - Continuous Drain (Id) @ 25°C	22A, 93A
