3M
| Part Number | 957210-6002-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 10POS 2MM VERT T/H 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40368 pcs | Data sheet | 1.957210-6002-AR.pdf2.957210-6002-AR.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | 957 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 04046719078950 3M6474 4046719078950 4671907895 70-2003-0401-5 7010386554 70200304015 9572106002AR DE500037002 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |

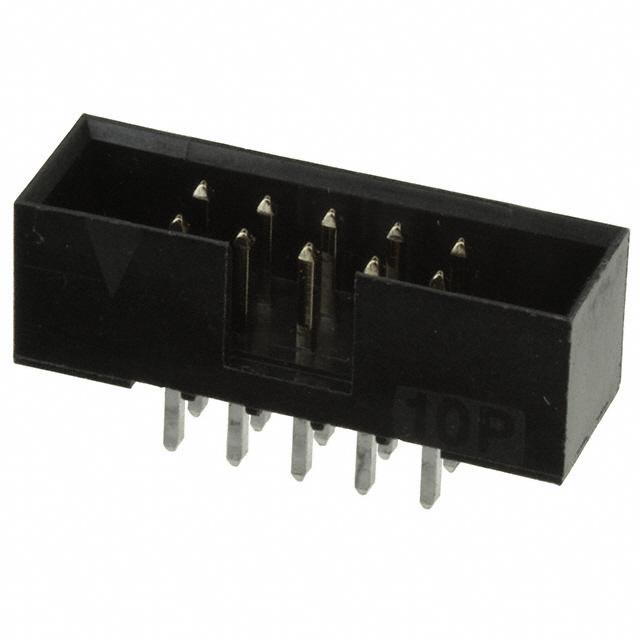

| Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
