3M

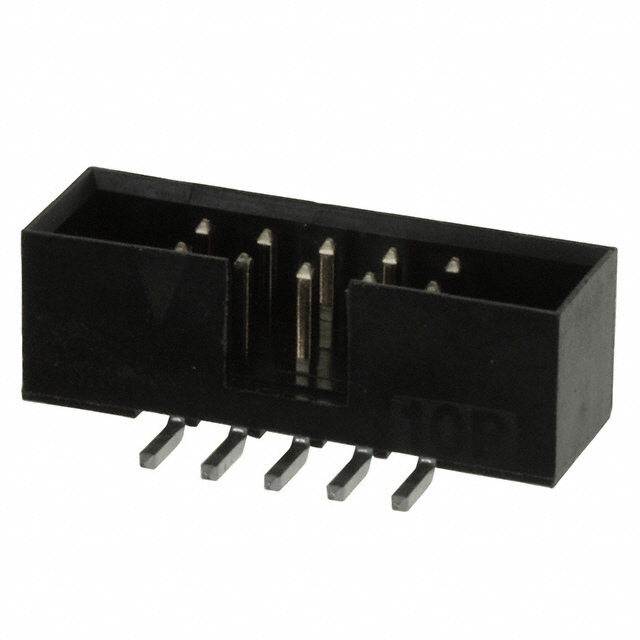

| Part Number | 957210-2000-AR-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 10POS 2MM VERT SMD 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54877 pcs | Data sheet | 1.957210-2000-AR-TP.pdf2.957210-2000-AR-TP.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | 957 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 00051119900576 3M6488 5111990057 51119900576 70-2003-0371-0 7010341573 70200303710 9572102000ARTP DE500037176 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 10 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
