ebm-papst Inc.

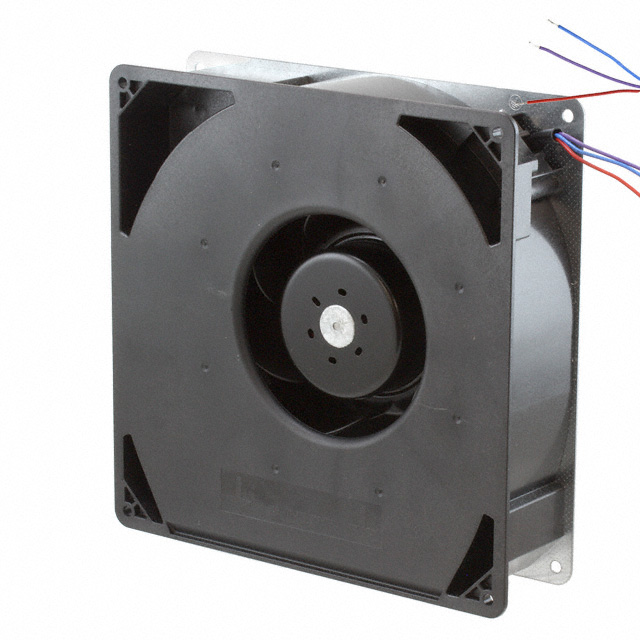

| Part Number | RG160-28/14NTDA | Manufacturer | ebm-papst Inc. |
|---|---|---|---|
| Description | FAN BLOWER 220X56MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 393 pcs | Data sheet | 1.RG160-28/14NTDA.pdf2.RG160-28/14NTDA.pdf3.RG160-28/14NTDA.pdf |
| Width | 56.00mm | Weight | 3.1 lbs (1.4kg) |
| Voltage Range | 16 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 220mm L x 220mm H | Series | RG160NTD |
| RPM | 4200 RPM | Power (Watts) | 64.0W |
| Other Names | 381-2425 9595414344 RG 160-28/14NTDA RG16028/14NTDA |
Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Noise | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic, Glass Filled | Material - Blade | Plastic, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 55000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP20 |
| Features | Temperature Sensor | Fan Type | Blower |
| Current Rating | 2.65A | Bearing Type | Ball |
| Approvals | - | Air Flow | 181.3 CFM (5.08m³/min) |
