ebm-papst Inc.
| Part Number | RG160-28/06S | Manufacturer | ebm-papst Inc. |
|---|---|---|---|

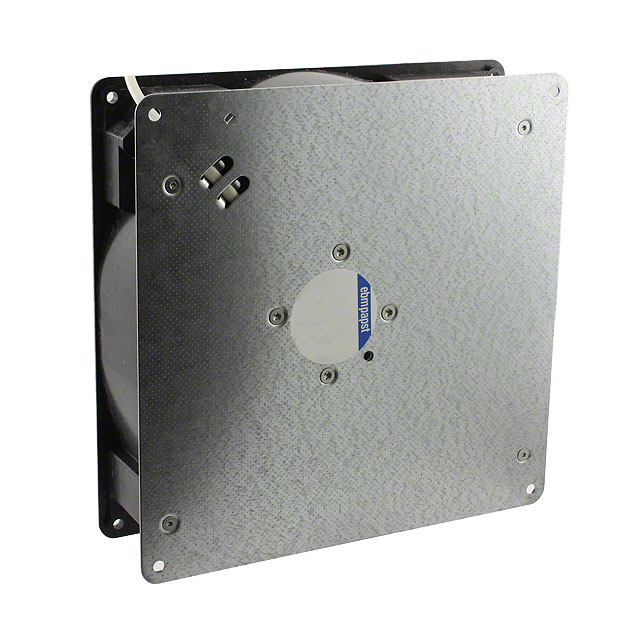

| Description | FAN BLWR FLATPAK 220X56MM 115VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 557 pcs | Data sheet | 1.RG160-28/06S.pdf2.RG160-28/06S.pdf |
| Width | 56.00mm | Weight | 3.8 lbs (1.7kg) |
| Voltage Range | - | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 220mm L x 220mm H | Series | RG160 |
| RPM | 3050 RPM | Power (Watts) | 50.0W |
| Other Names | 381-2561 RG160-28/06S-ND RG16028/06S |
Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Noise | 69.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic, Glass Filled | Material - Blade | Plastic, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 27500 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower, Flatpak |
| Current Rating | - | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 131.3 CFM (3.68m³/min) |
