ebm-papst Inc.

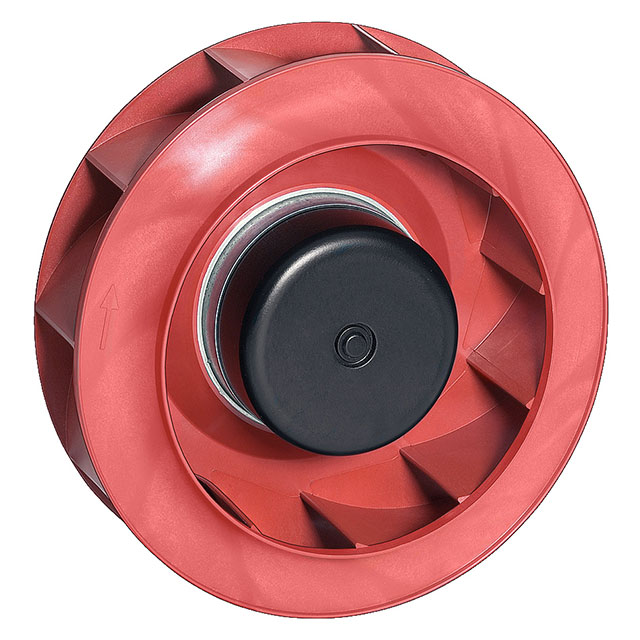

| Part Number | R1G220-AB73-52 | Manufacturer | ebm-papst Inc. |
|---|---|---|---|
| Description | FAN IMP MTRZD 220X71MM 48VDC | Lead Free Status / RoHS Status | Lead free by exemption / RoHS compliant by exemption |
| Quantity Available | 390 pcs | Data sheet | 1.R1G220-AB73-52.pdf2.R1G220-AB73-52.pdf3.R1G220-AB73-52.pdf |
| Width | 71.00mm | Weight | 3.1 lbs (1.4kg) |
| Voltage Range | 36 ~ 57VDC | Voltage - Rated | 48VDC |
| Termination | 4 Wire Leads | Static Pressure | - |
| Size / Dimension | Round - 220mm Dia | Series | R1G220 |
| RPM | 3100 RPM | Power (Watts) | 100.0W |
| Other Names | 381-3111 R1G220-AB73-52-ND R1G220AB7352 |
Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Noise | 73.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | - | Material - Blade | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS compliant by exemption | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Motorized Impellers |
| Current Rating | 2.4A | Bearing Type | Ball |
| Approvals | CCC, CSA, UL | Air Flow | 597.4 CFM (16.73m³/min) |
