ebm-papst Inc.
| Part Number | DV4112/2NP-201 | Manufacturer | ebm-papst Inc. |
|---|---|---|---|

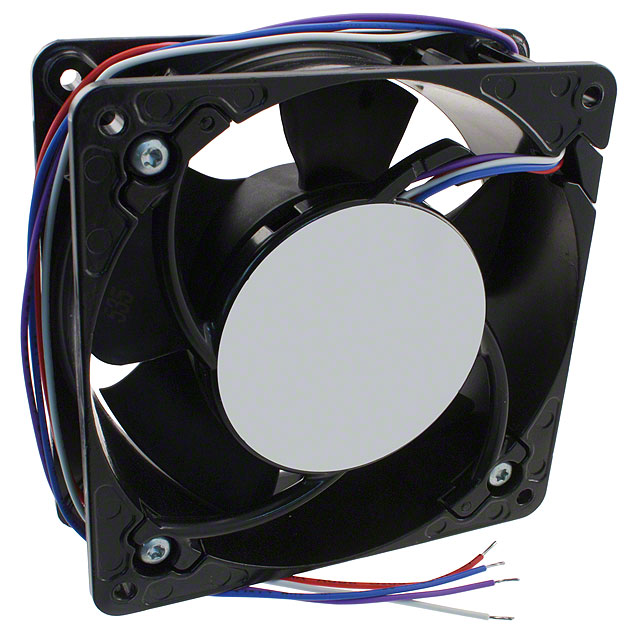

| Description | FAN AXIAL 119X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 612 pcs | Data sheet | 1.DV4112/2NP-201.pdf2.DV4112/2NP-201.pdf3.DV4112/2NP-201.pdf |
| Width | 38.00mm | Weight | 1 lb (453.59g) |
| Voltage Range | 9 ~ 15VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 1.586 in H2O (395.0 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | DV4100 |
| RPM | 6000 RPM | Power (Watts) | 23.00W |
| Other Names | 381-1142 DV4112/2NP-30201 DV4112/2NP30201 |
Operating Temperature | -4 ~ 149°F (-20 ~ 65°C) |
| Noise | 61.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 1.95A | Bearing Type | Ball |
| Approvals | CE, UL, VDE | Air Flow | 165.0 CFM (4.62m³/min) |
