ebm-papst Inc.
| Part Number | 712F | Manufacturer | ebm-papst Inc. |
|---|---|---|---|

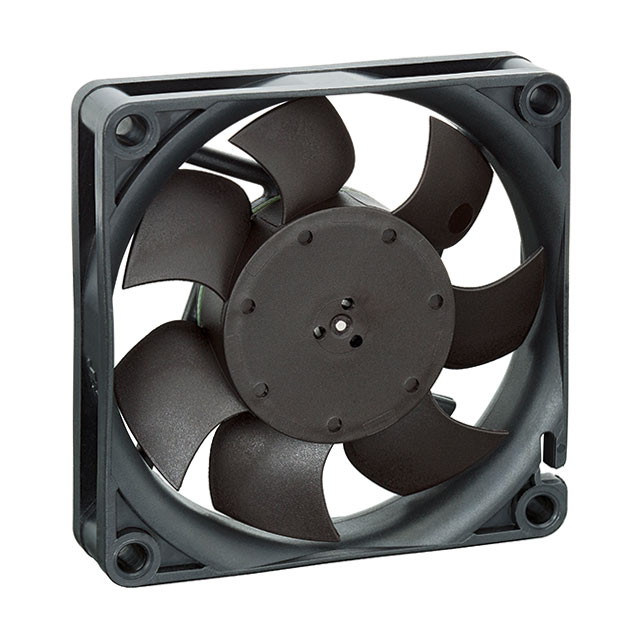

| Description | FAN AXIAL 70X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2362 pcs | Data sheet | 1.712F.pdf2.712F.pdf3.712F.pdf |
| Width | 15.00mm | Weight | 0.117 lb (53.07g) |
| Voltage Range | 8 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 70mm L x 70mm H | Series | 700F |
| RPM | 5300 RPM | Power (Watts) | 1.70W |
| Other Names | 381-1128 712 F 9292504001 |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 38.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | - | Bearing Type | Sintec |
| Approvals | CE, CSA, UL, VDE | Air Flow | 25.9 CFM (0.725m³/min) |
