ebm-papst Inc.

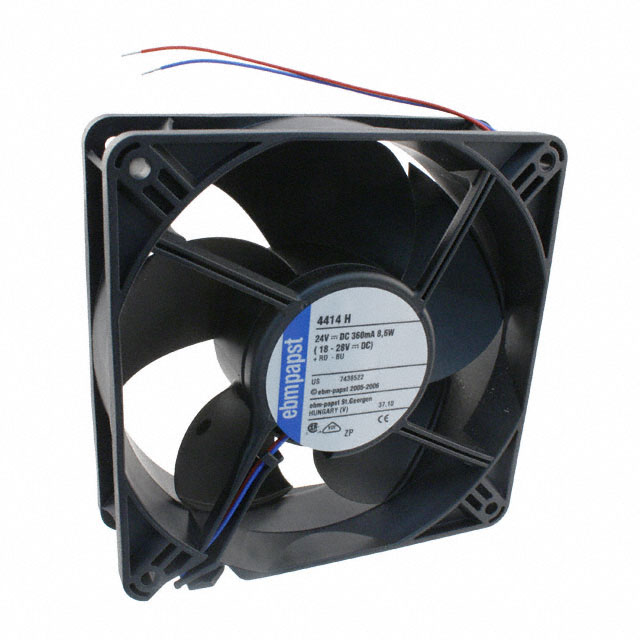

| Part Number | 4414H | Manufacturer | ebm-papst Inc. |
|---|---|---|---|
| Description | FAN AXIAL 119X38MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1684 pcs | Data sheet | 1.4414H.pdf2.4414H.pdf |
| Width | 38.00mm | Weight | 0.551 lb (249.93g) |
| Voltage Range | 18 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 4400 |
| RPM | 4300 RPM | Power (Watts) | 8.60W |
| Other Names | 381-2472 4414 H 4414H-ND Q4634150 |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 49.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 57500 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | - | Bearing Type | Ball |
| Approvals | CSA, UL, VDE | Air Flow | 141.3 CFM (3.96m³/min) |
