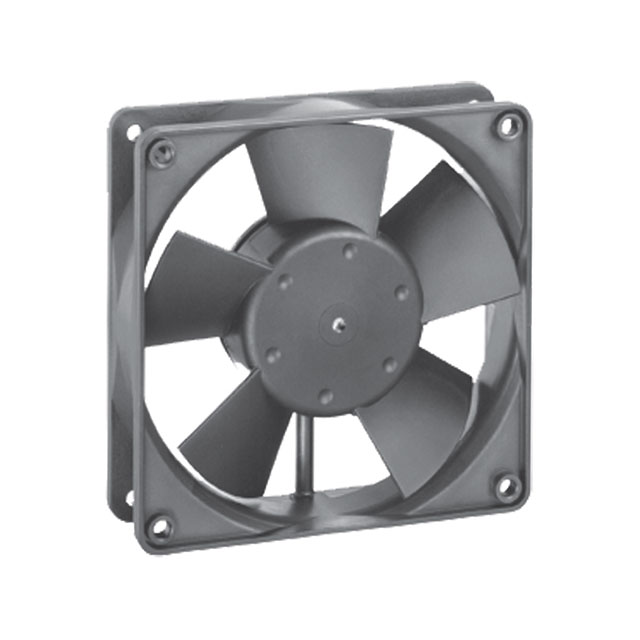

ebm-papst Inc.
| Part Number | 4314U | Manufacturer | ebm-papst Inc. |
|---|---|---|---|
| Description | FAN AXIAL 119X32MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1319 pcs | Data sheet | 1.4314U.pdf2.4314U.pdf3.4314U.pdf |
| Width | 32.00mm | Weight | 0.5 lb (226.8g) |
| Voltage Range | 12 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 4300U |
| RPM | 2800 RPM | Power (Watts) | 5.00W |
| Other Names | 381-2467 4314U-ND Q4081441 |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Noise | 45.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 62500 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 100.1 CFM (2.80m³/min) |
