ebm-papst Inc.

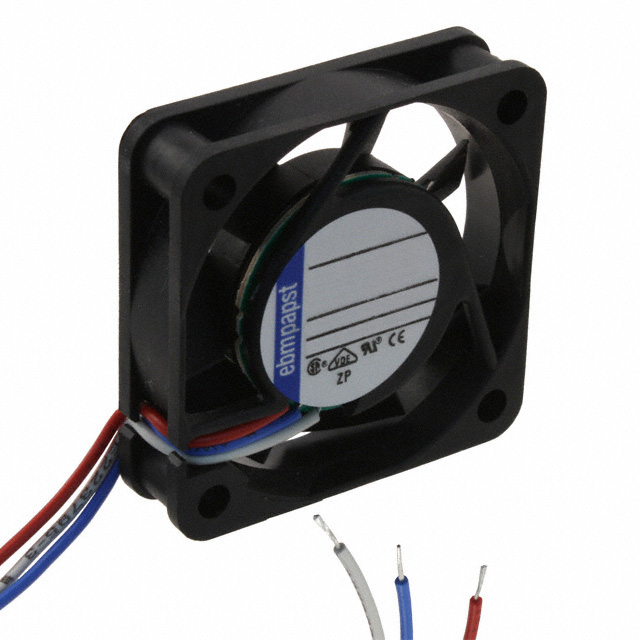

| Part Number | 412F/2H | Manufacturer | ebm-papst Inc. |
|---|---|---|---|
| Description | FAN AXIAL 40X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4562 pcs | Data sheet | 1.412F/2H.pdf2.412F/2H.pdf3.412F/2H.pdf |
| Width | 10.00mm | Weight | 0.038 lb (17.24g) |
| Voltage Range | 10 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 40mm L x 40mm H | Series | 400F |
| RPM | 6000 RPM | Power (Watts) | 800mW |
| Other Names | 381-2461 412F/2H-ND Q1628476A |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 26.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 45000 Hrs @ 20°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | - | Bearing Type | Sintec |
| Approvals | CSA, UL, VDE | Air Flow | 5.3 CFM (0.148m³/min) |
