ANT6230LL01R1575A

Yageo

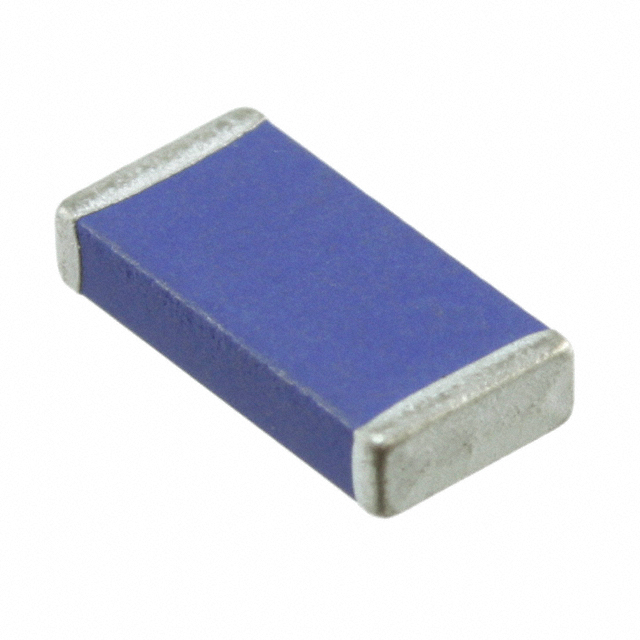

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANT6230LL01R1575A
Manufacturer/Brand:	Yageo
Product description	RF ANT 1.575GHZ CHIP SOLDER SMD
Datasheets:	ANT6230LL01R1575A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45591 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 45591 pcs

Reference Price (In US Dollars)

1 pcs: $0.665

10 pcs: $0.601

25 pcs: $0.537

100 pcs: $0.483

250 pcs: $0.429

500 pcs: $0.376

1000 pcs: $0.311

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.665

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANT6230LL01R1575A

Part Number	ANT6230LL01R1575A	Manufacturer	Yageo
Description	RF ANT 1.575GHZ CHIP SOLDER SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45591 pcs	Data sheet	ANT6230LL01R1575A.pdf
VSWR	-	Termination	Solder
Series	6230	Return Loss	-10dB
Power - Max	1W	Packaging	Cut Tape (CT)
Other Names	311-1548-1	Number of Bands	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.049" (1.25mm)
Gain	2.52dBi	Frequency Range	1.548GHz ~ 1.602GHz
Frequency Group	UHF (1 GHz ~ 2 GHz)	Frequency (Center/Band)	1.575GHz
Features	-	Detailed Description	1.575GHz GPS Chip RF Antenna 1.548GHz ~ 1.602GHz 2.52dBi Solder Surface Mount
Applications	GPS	Antenna Type	Chip
