ANT1818B00BT1516S

Yageo

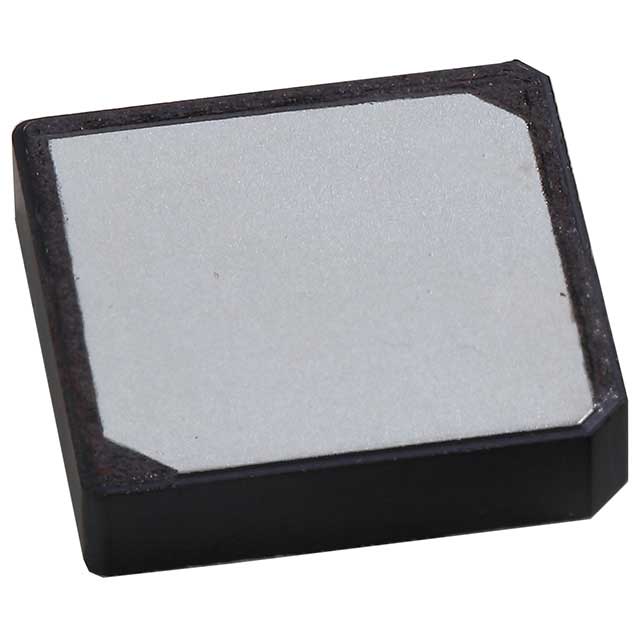

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANT1818B00BT1516S
Manufacturer/Brand:	Yageo
Product description	RF ANT 1.575/1.602GHZ CER PATCH
Datasheets:	ANT1818B00BT1516S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17881 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17881 pcs

Reference Price (In US Dollars)

1 pcs: $2.063

10 pcs: $1.842

60 pcs: $1.658

120 pcs: $1.511

300 pcs: $1.363

540 pcs: $1.223

1020 pcs: $1.032

2520 pcs: $0.98

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.063

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANT1818B00BT1516S

Part Number	ANT1818B00BT1516S	Manufacturer	Yageo
Description	RF ANT 1.575/1.602GHZ CER PATCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17881 pcs	Data sheet	ANT1818B00BT1516S.pdf
VSWR	2	Termination	Solder
Series	-	Return Loss	-17.801dB, -17.008dB
Packaging	Tray	Other Names	311-1531 ANT1818B00BT1516A CAN43134240B1561B
Number of Bands	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.157" (4.00mm)	Gain	1.89dBi, 2.59dBi
Frequency Range	1.575GHz ~ 1.606GHz	Frequency Group	UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band)	1.575GHz, 1.602GHz	Features	-
Detailed Description	1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.606GHz 1.89dBi, 2.59dBi Solder Surface Mount	Applications	GLONASS, GPS
Antenna Type	Ceramic Patch
