ANT1606JB12B1575A

Yageo

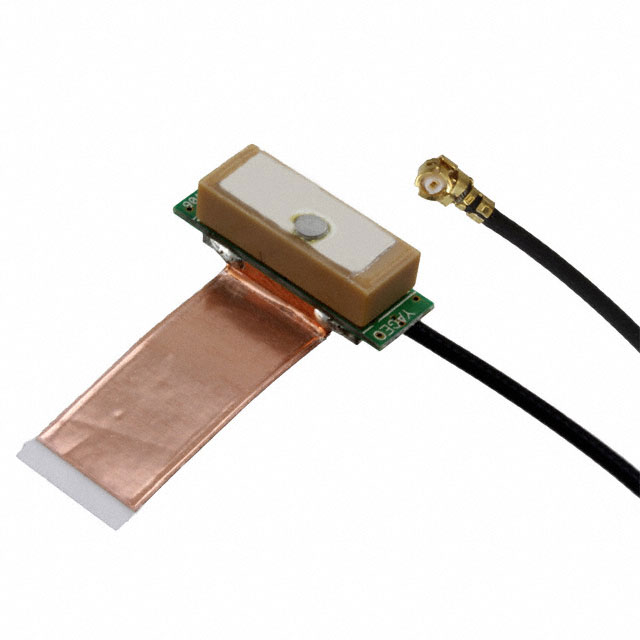

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANT1606JB12B1575A
Manufacturer/Brand:	Yageo
Product description	RF ANT 1.575GHZ CER PATCH IPEX
Datasheets:	ANT1606JB12B1575A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10211 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10211 pcs

Reference Price (In US Dollars)

1 pcs: $3.858

10 pcs: $3.471

25 pcs: $3.162

100 pcs: $2.854

250 pcs: $2.622

500 pcs: $2.391

1000 pcs: $2.082

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANT1606JB12B1575A

Part Number	ANT1606JB12B1575A	Manufacturer	Yageo
Description	RF ANT 1.575GHZ CER PATCH IPEX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10211 pcs	Data sheet	ANT1606JB12B1575A.pdf
VSWR	2	Termination	Connector, IPEX MHF
Series	-	Return Loss	-
Packaging	Bulk	Other Names	311-1529 ANT1606JB121575A CAN4313346121581B
Number of Bands	1	Mounting Type	Adhesive
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.205" (5.20mm)	Gain	-2.52dBic
Frequency Range	1.566GHz ~ 1.584GHz	Frequency Group	UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band)	1.575GHz	Features	LNA, Filter
Detailed Description	1.575GHz GPS Ceramic Patch RF Antenna 1.566GHz ~ 1.584GHz -2.52dBic Connector, IPEX MHF Adhesive	Applications	GPS
Antenna Type	Ceramic Patch
