JCD0605D15

XP PowerXP Power

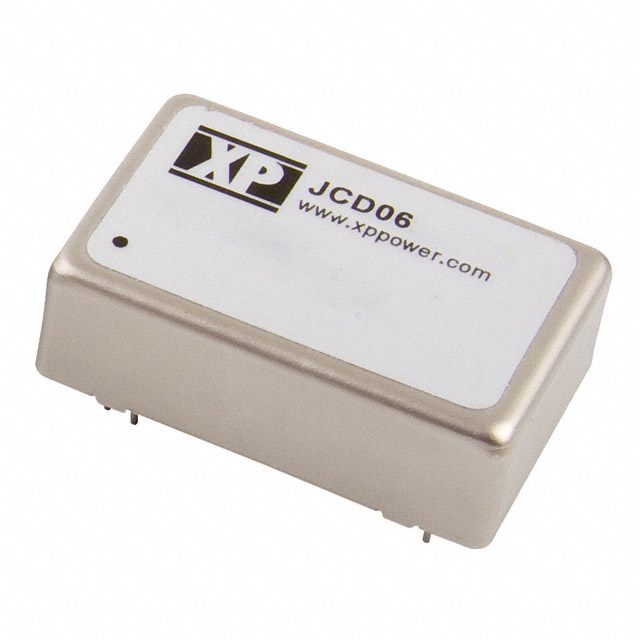

JCD0605D15 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JCD0605D15
Manufacturer/Brand: XP Power
Product description DC DC CONVERTER +/-15V 6W
Datasheets: JCD0605D15.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4849 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4849 pcs
Reference Price (In US Dollars)
10 pcs
$7.301
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$7.301

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JCD0605D15

Part Number JCD0605D15 Manufacturer XP Power
Description DC DC CONVERTER +/-15V 6W Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4849 pcs Data sheet JCD0605D15.pdf
Voltage - Output 3 - Voltage - Output 2 -15V
Voltage - Output 1 15V Voltage - Isolation 1.6kV
Voltage - Input (Min) 4.5V Voltage - Input (Max) 9V
Type Isolated Module Size / Dimension 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Series JCD Power (Watts) 6W
Packaging Tube Package / Case 24-DIP Module, 8 Leads
Operating Temperature -40°C ~ 100°C Number of Outputs 2
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 9 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features OCP, OVP, SCP Efficiency 84%
Detailed Description Isolated Module DC DC Converter 2 Output 15V -15V 200mA 4.5V - 9V Input Current - Output (Max) 200mA
Applications ITE (Commercial)
