S14100037

Wurth Electronics

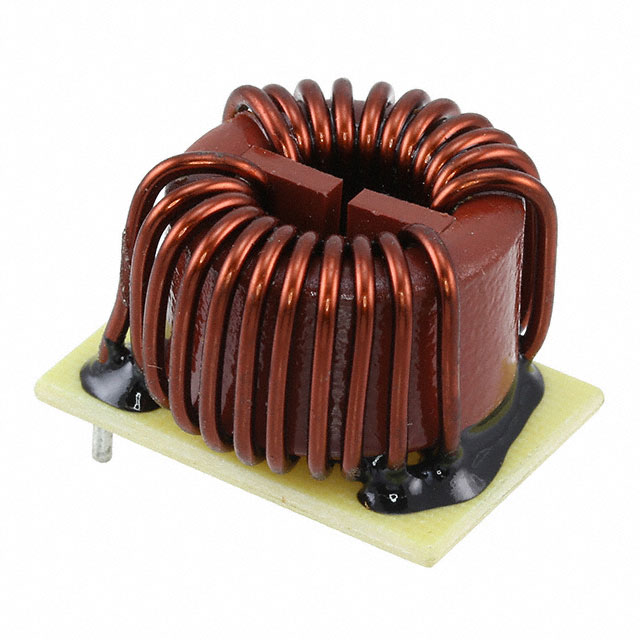

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S14100037
Manufacturer/Brand:	Wurth Electronics
Product description	COMMON MODE CHOKE 1MH 15A 2LN TH
Datasheets:	S14100037.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22211 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22211 pcs

Reference Price (In US Dollars)

1 pcs: $1.51

10 pcs: $1.436

20 pcs: $1.295

100 pcs: $1.198

200 pcs: $1.092

280 pcs: $1.032

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.51

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S14100037

Part Number	S14100037	Manufacturer	Wurth Electronics
Description	COMMON MODE CHOKE 1MH 15A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22211 pcs	Data sheet	S14100037.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.220" L x 1.102" W (31.00mm x 28.00mm)	Series	WE-CMBH
Ratings	-	Packaging	Bulk
Package / Case	Horizontal, 4 PC Pin	Other Names	732-7138
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1mH @ 10kHz	Height (Max)	0.827" (21.00mm)
Filter Type	-	Features	-
Detailed Description	1mH @ 10kHz 2 Line Common Mode Choke Through Hole 15A DCR 7.5 mOhm	DC Resistance (DCR) (Max)	7.5 mOhm
Current Rating (Max)	15A	Approvals	-
