760308103203

Wurth Electronics

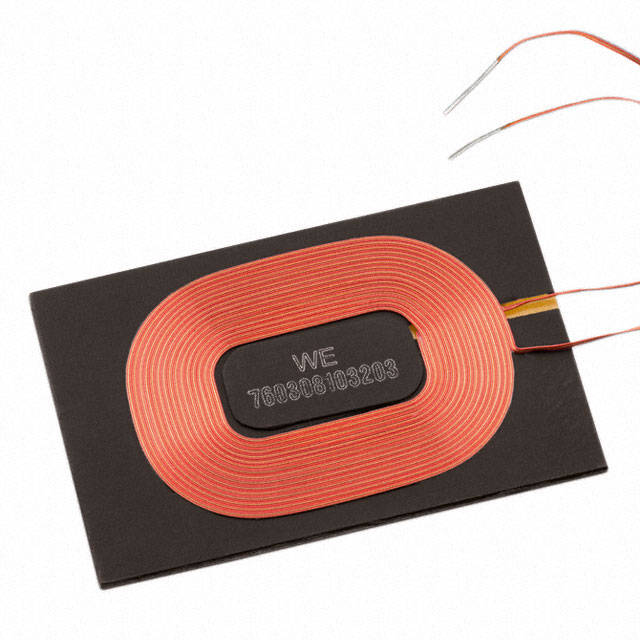

Image may be representation. See specifications for product details.

Product Overview

Part Number:	760308103203
Manufacturer/Brand:	Wurth Electronics
Product description	RX 1 COIL 1 LAYER 12UH 1.55A
Datasheets:	760308103203.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16576 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16576 pcs

Reference Price (In US Dollars)

1 pcs: $2.186

10 pcs: $2.023

50 pcs: $1.617

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.186

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 760308103203

Part Number	760308103203	Manufacturer	Wurth Electronics
Description	RX 1 COIL 1 LAYER 12UH 1.55A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16576 pcs	Data sheet	760308103203.pdf
Type	1 Coil, 1 Layer	Tolerance	±10%
Size / Dimension	1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)	Series	WE-WPCC
Q @ Freq	21 @ 125kHz	Other Names	1297-1115 1297-1115-ND 732-5256
Operating Temperature	-20°C ~ 105°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	12µH	Function	Receiver
Frequency - Self Resonant	20MHz	Detailed Description	1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 550 mOhm
DC Resistance (DCR)	550 mOhm	Current Rating	1.55A
Current - Saturation	3A
