760308101103

Wurth Electronics

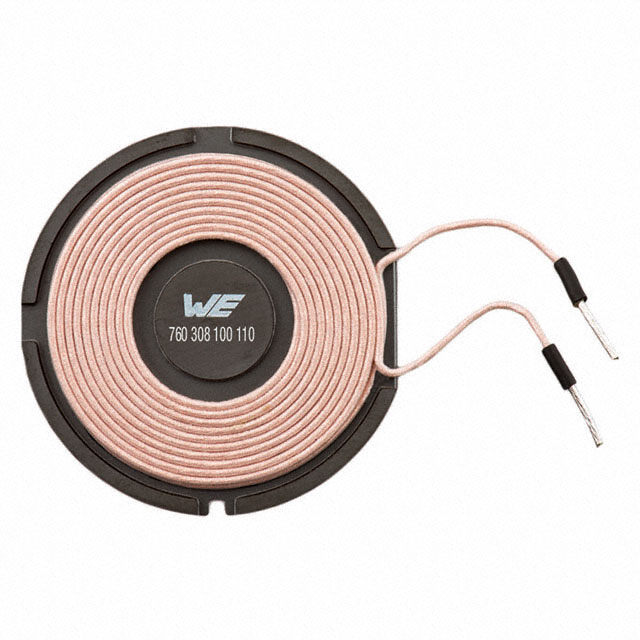

Image may be representation. See specifications for product details.

Product Overview

Part Number:	760308101103
Manufacturer/Brand:	Wurth Electronics
Product description	TX 1 COIL 1 LAYER 6.5UH 3A
Datasheets:	760308101103.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7493 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7493 pcs

Reference Price (In US Dollars)

1 pcs: $4.118

50 pcs: $3.892

84 pcs: $3.293

168 pcs: $2.844

336 pcs: $2.395

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.118

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 760308101103

Part Number	760308101103	Manufacturer	Wurth Electronics
Description	TX 1 COIL 1 LAYER 6.5UH 3A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7493 pcs	Data sheet	760308101103.pdf
Type	1 Coil, 1 Layer	Tolerance	±10%
Size / Dimension	1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)	Series	WE-WPCC
Q @ Freq	35 @ 125kHz	Other Names	732-5673
Operating Temperature	-20°C ~ 105°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	6.5µH	Function	Transmitter
Frequency - Self Resonant	20MHz	Detailed Description	1 Coil, 1 Layer 6.5µH Wireless Charging Coil Transmitter 180 mOhm Max
DC Resistance (DCR)	180 mOhm Max	Current Rating	3A
Current - Saturation	8A
