Wurth Electronics

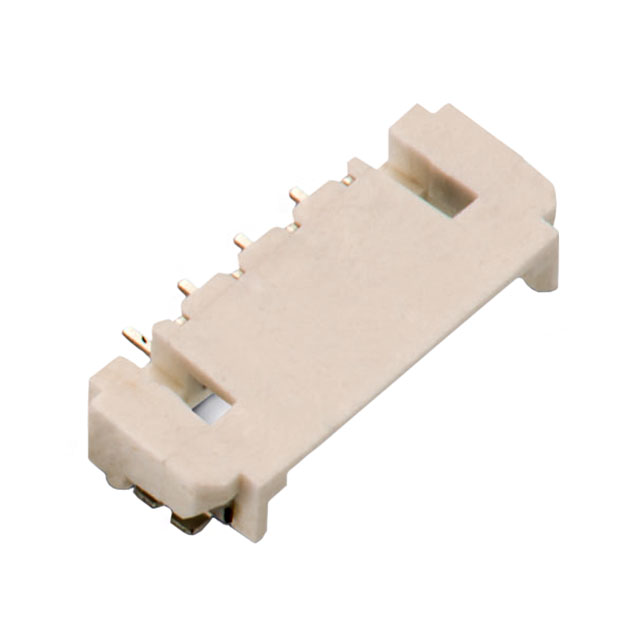

| Part Number | 695403150122 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WR-LECO 1.50MM 3PINS SMT PLUG AN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90449 pcs | Data sheet | 695403150122.pdf |
| Voltage Rating | 150VAC | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 3 Wall |
| Series | WR-LECO | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 732-10030-1 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.073" (1.85mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.059" (1.50mm) | Current Rating | 1A |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
