Wurth Electronics

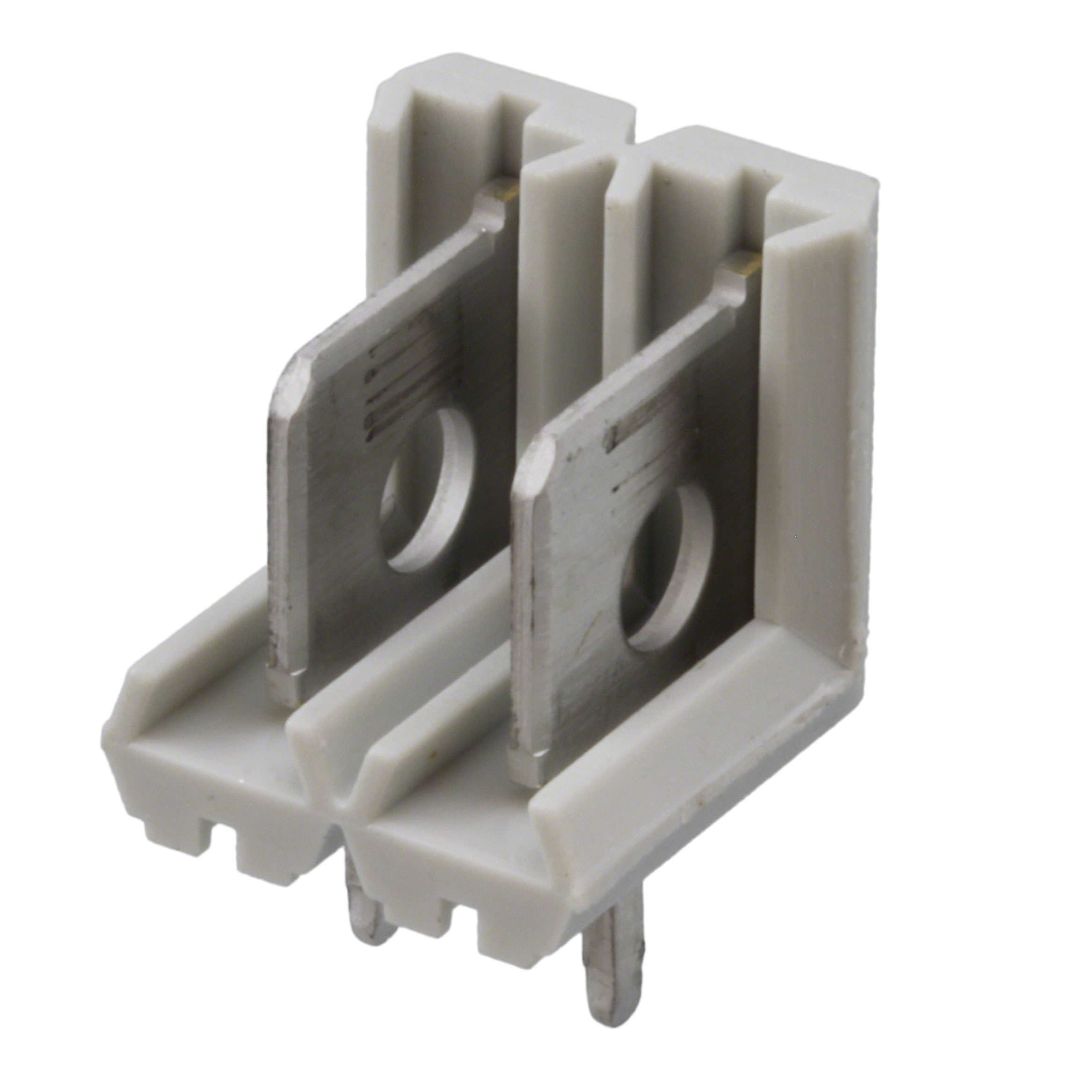

| Part Number | 691386700002 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145702 pcs | Data sheet | 691386700002.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Blade Pins |
| Torque - Screw | - | Termination Style | Solder |
| Series | WR-TBL Series 386 | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Tray |
| Other Names | 732-5982 | Operating Temperature | -30°C ~ 130°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.429" (10.90mm) |
| Ingress Protection | - | Housing Material | Polycarbonate (PC) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Blade Pins 0.197" (5.00mm) Vertical Through Hole | Current - UL | 14A |
| Current - IEC | 16A | Contact Tail Length | 0.161" (4.10mm) |
| Contact Mating Finish | - | Contact Material | Copper Alloy |
| Color | Gray |
