Wurth Electronics

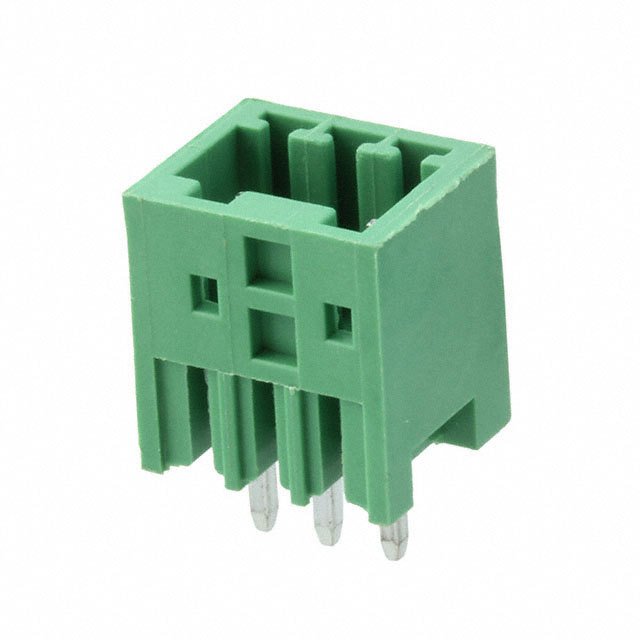

| Part Number | 691382000003 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 216659 pcs | Data sheet | 691382000003.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | WR-TBL Series 382 |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.098" (2.50mm) |
| Packaging | Tray | Other Names | 732-6062 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.398" (10.11mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | Vertical |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Through Hole |
| Current - UL | 12A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
