Wurth Electronics
| Part Number | 691374500006B | Manufacturer | Wurth Electronics |
|---|---|---|---|

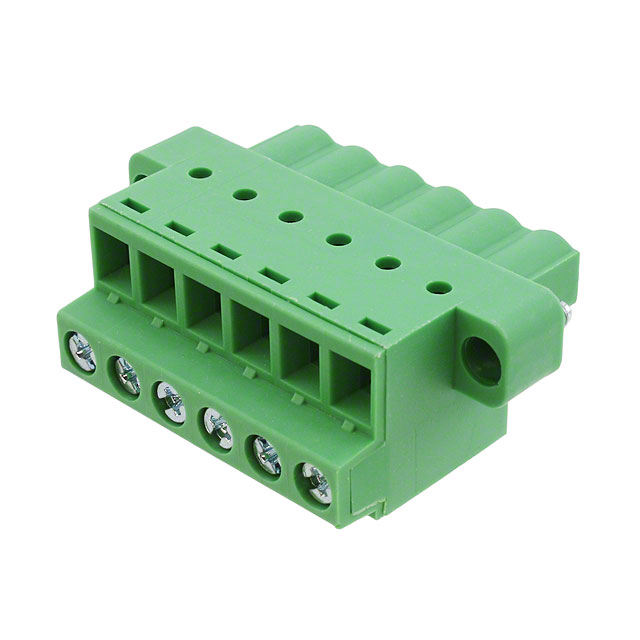

| Description | TERM BLOCK PLUG 6POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19106 pcs | Data sheet | 691374500006B.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-3.3mm² |
| Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.45 Nm (4.0 Lb-In) |
| Termination Style | Screw - Pressure Clip | Series | WR-TBL Series 374B |
| Screw Size | M2.6 | Positions Per Level | 6 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Tray | Other Names | 732-4424 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.587" (14.91mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 16A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Green |
