Wurth Electronics
| Part Number | 691368300002B | Manufacturer | Wurth Electronics |
|---|---|---|---|

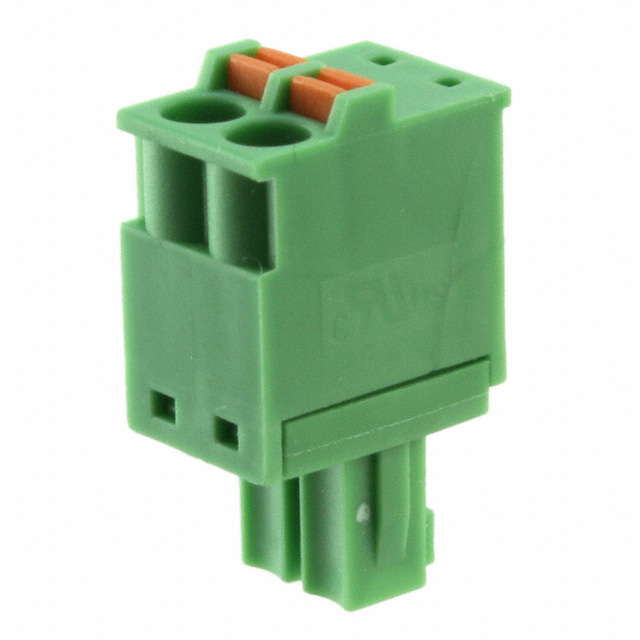

| Description | TERM BLOCK PLUG 2POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76912 pcs | Data sheet | 691368300002B.pdf |
| Wire Strip Length | 9mm | Wire Gauge or Range - mm² | 0.08-1.3mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | WR-TBL Series 368B |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 732-4378 |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.492" (12.50mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | - | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Steel, Stainless | Color | Green, Orange |
