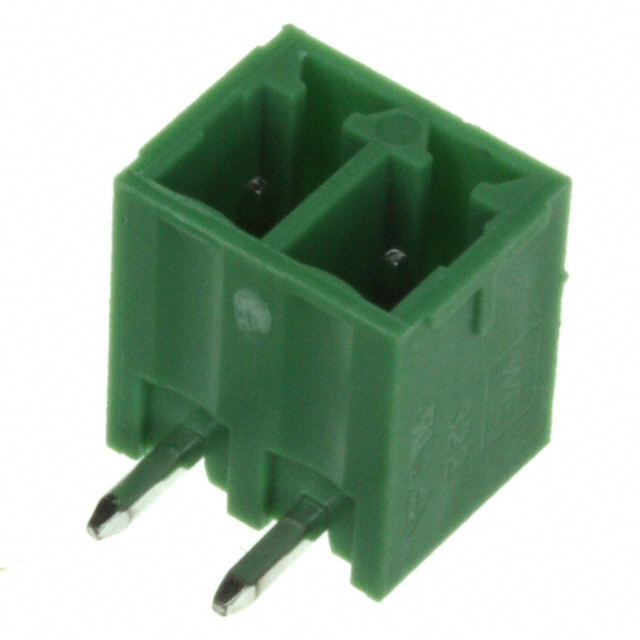

Wurth Electronics
| Part Number | 691322310002 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 290630 pcs | Data sheet | 1.691322310002.pdf2.691322310002.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | WR-TBL Series 322 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 732-2088 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.276" (7.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Green |
