Wurth Electronics
| Part Number | 691313510008 | Manufacturer | Wurth Electronics |
|---|---|---|---|

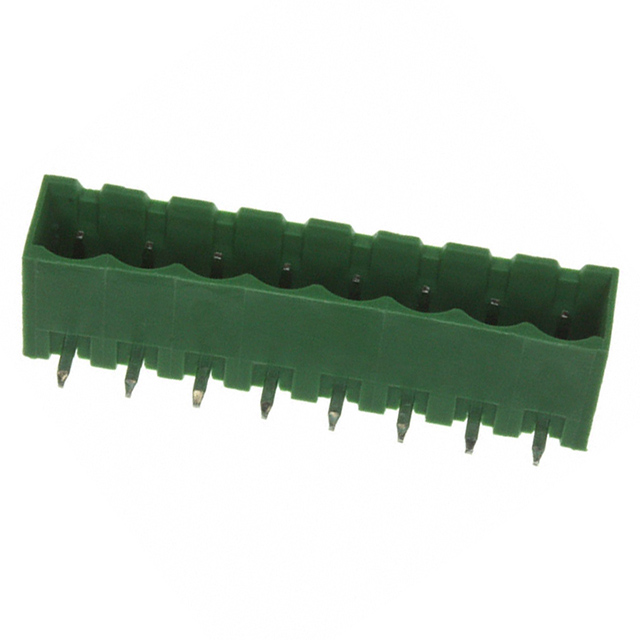

| Description | TERM BLOCK HDR 8POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79028 pcs | Data sheet | 1.691313510008.pdf2.691313510008.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | WR-TBL Series 313 |
| Screw Size | - | Positions Per Level | 8 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Tray | Other Names | 732-2075 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 20A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Green |
