Wurth Electronics
| Part Number | 691304330005 | Manufacturer | Wurth Electronics |
|---|---|---|---|

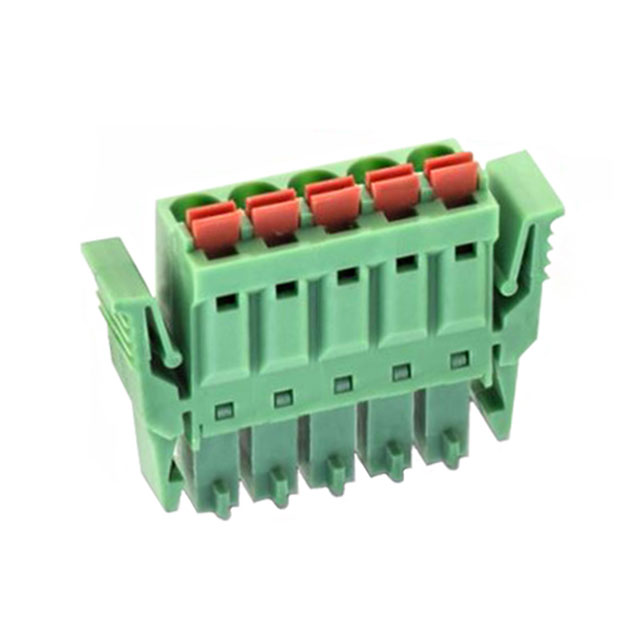

| Description | TERM BLOCK PLUG 5POS 180 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14495 pcs | Data sheet | 691304330005.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.21-1.3mm² |
| Wire Gauge or Range - AWG | 16-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | WR-TBL 3043 |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | 180° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 732-11052 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.307" (7.80mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Latch Lock | Detailed Description | 5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Current - UL | 12A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Steel, Stainless | Color | Green |
