Wurth Electronics

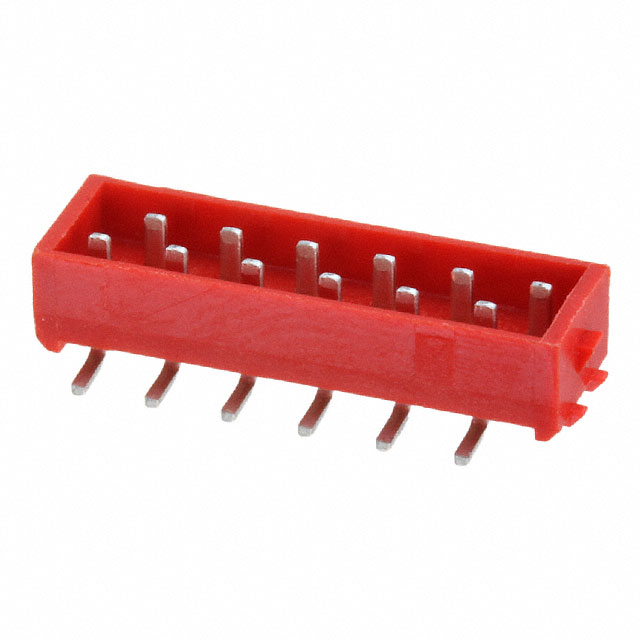

| Part Number | 690357281276 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WR-MM MALE SMT CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50670 pcs | Data sheet | 690357281276.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | WR-MM | Row Spacing - Mating | 0.059" (1.50mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 732-4881-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.142" (3.60mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Surface Mount 12 position 0.100" (2.54mm) | Current Rating | 1.5A per Contact |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
