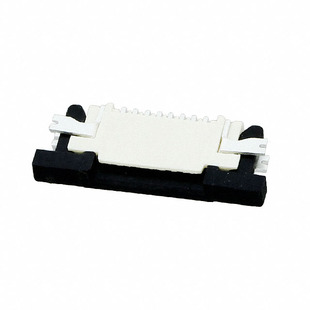

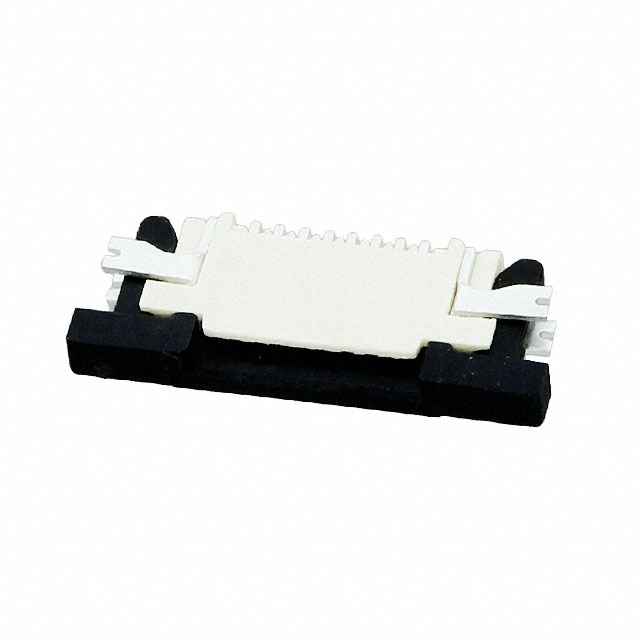

Wurth Electronics
| Part Number | 687108183622 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FFC TOP 8POS 0.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54022 pcs | Data sheet | 1.687108183622.pdf2.687108183622.pdf |
| Voltage Rating | - | Termination | Solder |
| Series | WR-FPC | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 732-11335-1 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Ivory | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 8 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.4A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 120.0µin (3.05µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight |
| Actuator Material | Polyamide (PA6T), Nylon 6T | Actuator Color | Black |
