Wurth Electronics
| Part Number | 686124148922 | Manufacturer | Wurth Electronics |
|---|---|---|---|

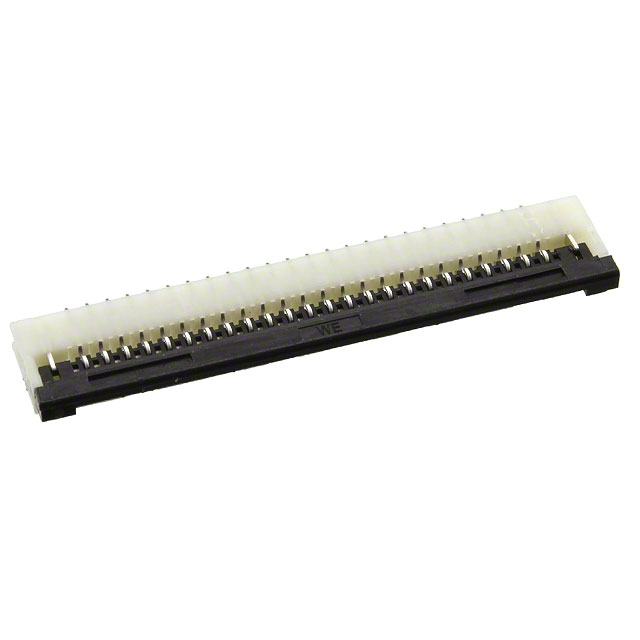

| Description | CONN 1MM HORZ BOTTOM SMD 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57629 pcs | Data sheet | 1.686124148922.pdf2.686124148922.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Series | WR-FPC | Pitch | 0.039" (1.00mm) |
| Packaging | Original-Reel® | Other Names | 732-6027-6 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 24 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T |
| Housing Color | Ivory | Height Above Board | 0.087" (2.20mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 24 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 120.0µin (3.05µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyamide (PA6T), Nylon 6T | Actuator Color | Black |
