Wurth Electronics

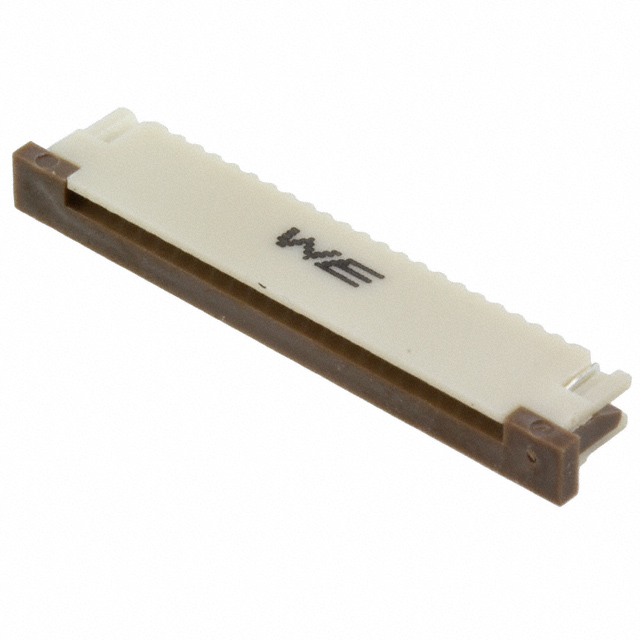

| Part Number | 68612214122 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FPC TOP 22POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63634 pcs | Data sheet | 1.68612214122.pdf2.68612214122.pdf |
| Voltage Rating | 125V | Termination | Solder |
| Series | WR-FPC | Pitch | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | 732-3509-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 22 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyphenylene Sulfide (PPS) |
| Housing Color | Beige | Height Above Board | 0.116" (2.95mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm | Detailed Description | 22 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 100.0µin (2.54µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Brown |
