Wurth Electronics

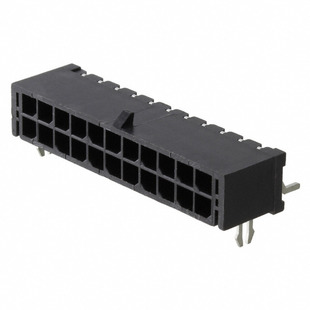

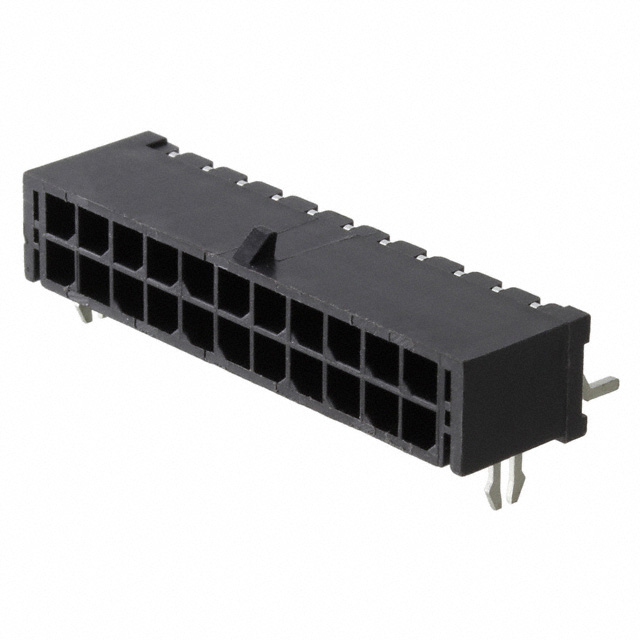

| Part Number | 662022230822 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WR-MPC3 POWER CONNECTOR 22POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23571 pcs | Data sheet | 662022230822.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-MPC3 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 732-4811 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.290" (7.37mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Surface Mount, Right Angle 22 position 0.118" (3.00mm) | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
