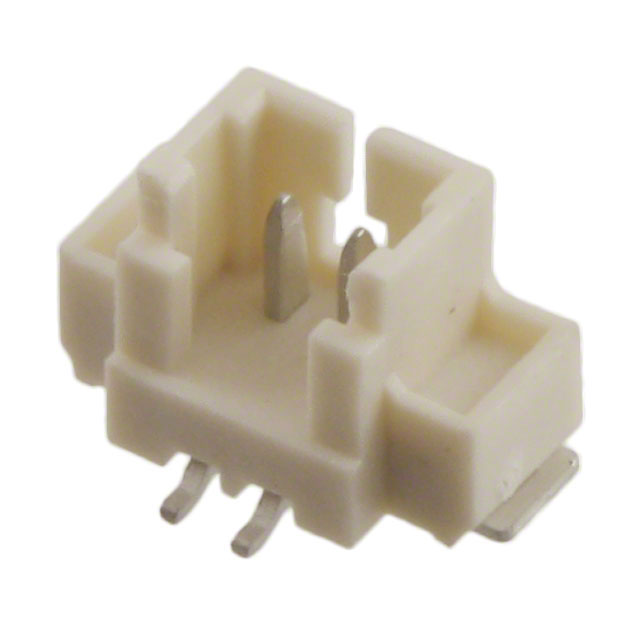

Wurth Electronics
| Part Number | 653102124022 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 2POS MALE VERT 1.25MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50909 pcs | Data sheet | 653102124022.pdf |
| Voltage Rating | 125V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-WTB | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 732-2723-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.187" (4.75mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 2 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
