Wurth Electronics
| Part Number | 64900621122 | Manufacturer | Wurth Electronics |
|---|---|---|---|

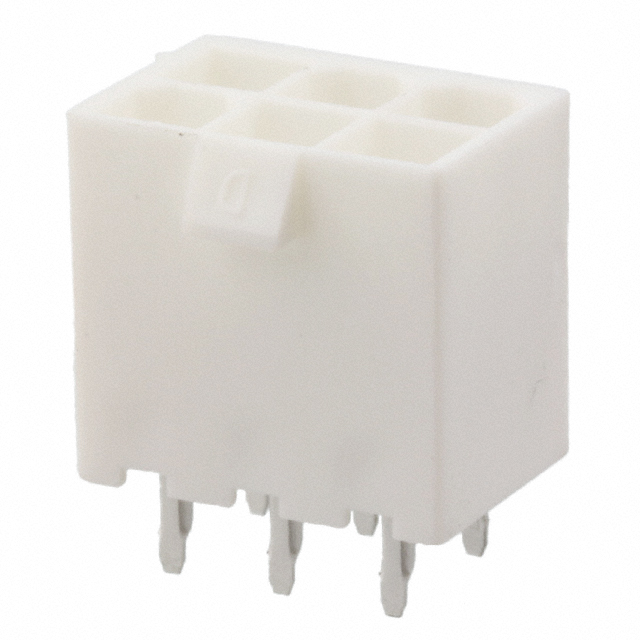

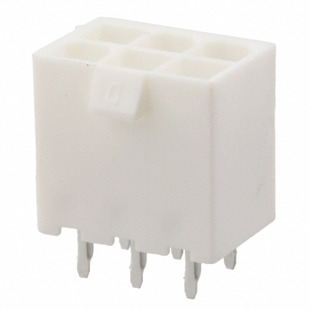

| Description | HEADER MALE 4.20MM DUAL VERT 6P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129859 pcs | Data sheet | 1.64900621122.pdf2.64900621122.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-MPC4 | Row Spacing - Mating | 0.217" (5.51mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 732-1929 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 6 position 0.165" (4.20mm) | Current Rating | 8A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
