Wurth Electronics
| Part Number | 62403821722 | Manufacturer | Wurth Electronics |
|---|---|---|---|

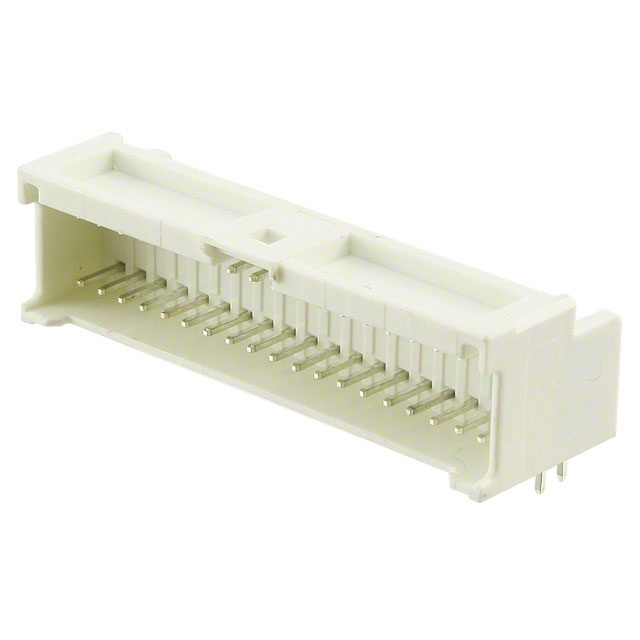

| Description | CONN HEADR 38POS 2MM R/A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11693 pcs | Data sheet | 62403821722.pdf |
| Voltage Rating | 250V | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-WTB | Row Spacing - Mating | 0.197" (5.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 732-4342 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 38 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.453" (11.50mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 38 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
