Wurth Electronics

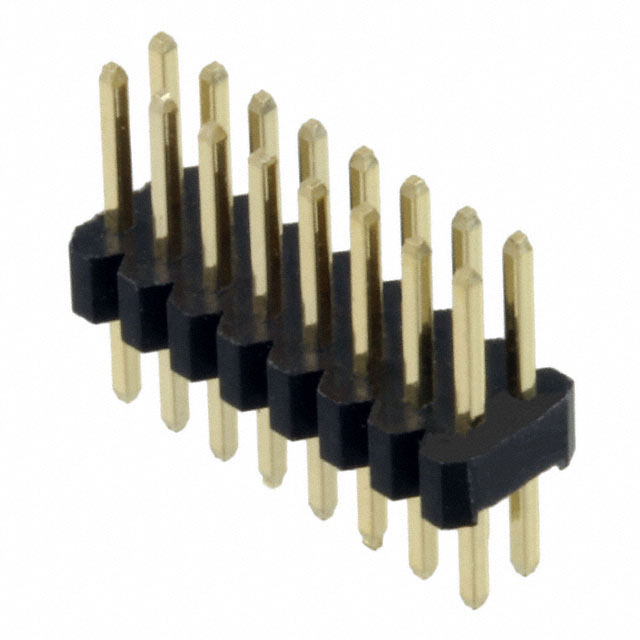

| Part Number | 62201621121 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN HEADER VERT DUAL 16POS 1.27 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76809 pcs | Data sheet | 62201621121.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | WR-PHD | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Overall Contact Length | 0.299" (7.60mm) | Other Names | 732-5376 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 16 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | 0.150" (3.81mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
