Wurth Electronics
| Part Number | 61900411121 | Manufacturer | Wurth Electronics |
|---|---|---|---|

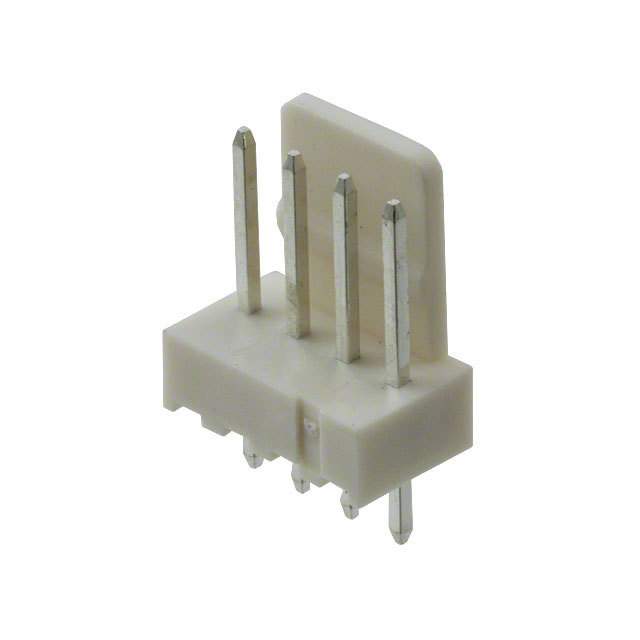

| Description | HEADER 4POS PIN T/H 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100457 pcs | Data sheet | 61900411121.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 1 Wall |
| Series | WR-WTB | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.559" (14.20mm) | Other Names | 732-2697 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.453" (11.50mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
