Wurth Electronics

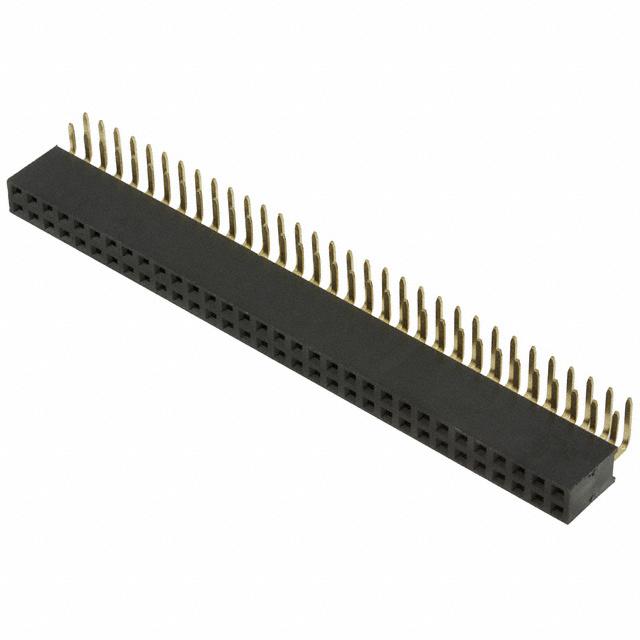

| Part Number | 613064243121 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 64POS SCKT R/A DL 2.54 MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31446 pcs | Data sheet | 613064243121.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board | Series | WR-PHD |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 732-2866 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 64 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 64 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | 3A |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
