Wurth Electronics

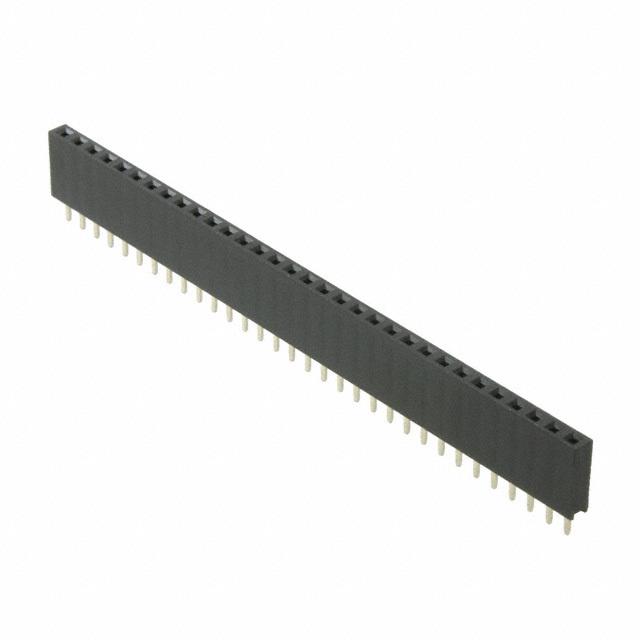

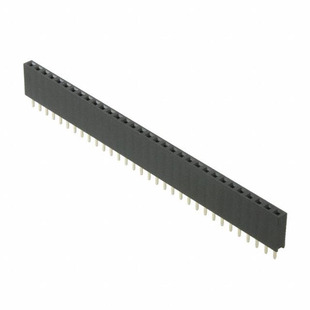

| Part Number | 61303211821 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN HEADER 32POS SOCKET 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53891 pcs | Data sheet | 61303211821.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board | Series | WR-PHD |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 732-2860 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 32 Position Header Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
