Wurth Electronics

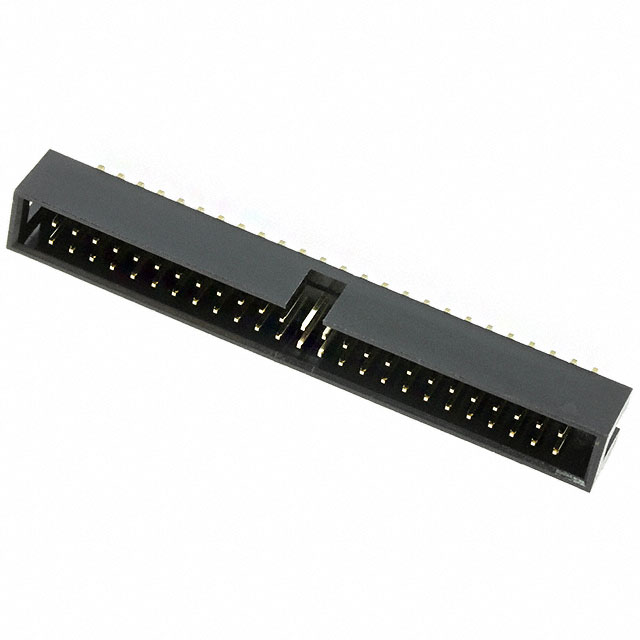

| Part Number | 61205021721 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN HEADER 50 POS RA 2.54 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45470 pcs | Data sheet | 1.61205021721.pdf2.61205021721.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-BHD | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 732-5414 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.358" (9.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
