Wurth Electronics
| Part Number | 61202620621 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN HEADER 26 POS 2.54 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16396 pcs | Data sheet | 61202620621.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-BHD | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 732-5483-5 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.365" (9.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Push-Pull |

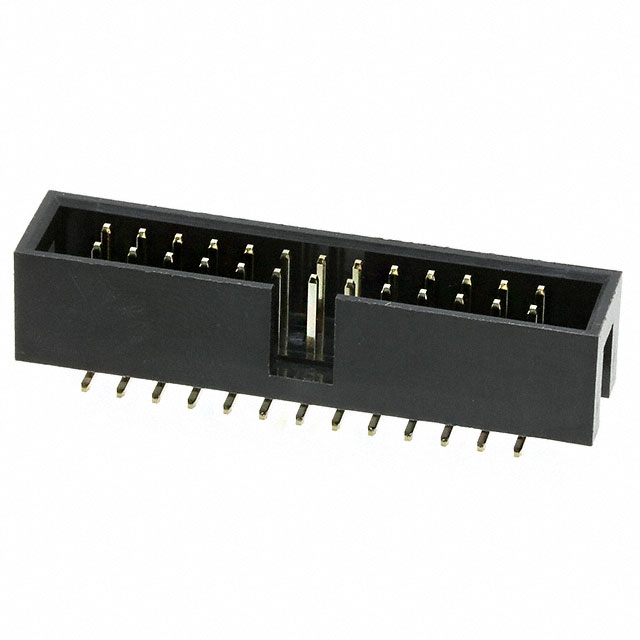

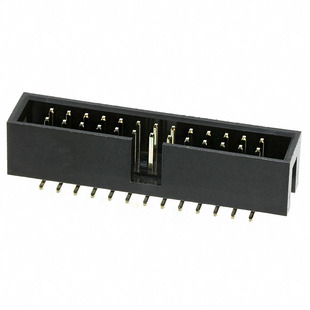

| Detailed Description | Connector Header Surface Mount 26 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.200" (5.08mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
