Wurth Electronics
| Part Number | 610114249221 | Manufacturer | Wurth Electronics |
|---|---|---|---|

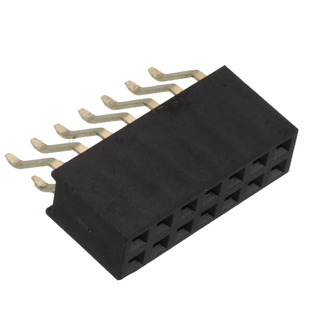

| Description | HEADER SOCKET 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44632 pcs | Data sheet | 610114249221.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | WR-PHD |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 732-6081-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 14 Position Header Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold | Current Rating | 3A |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
