8536681001

Weidmuller

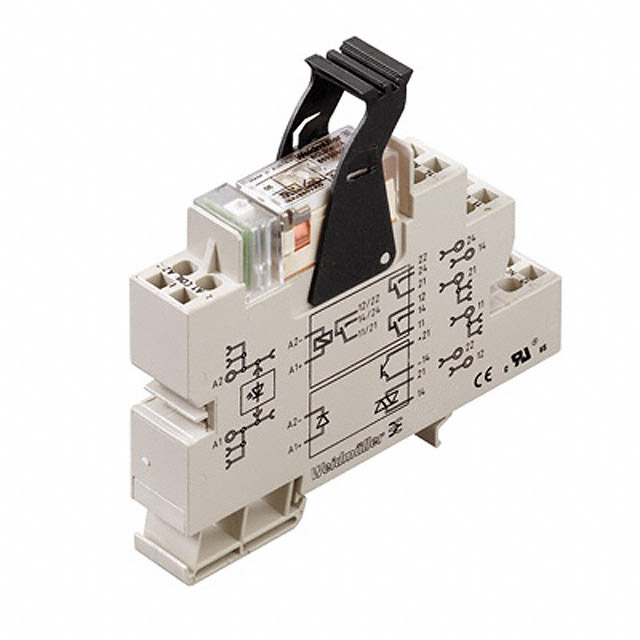

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8536681001
Manufacturer/Brand:	Weidmuller
Product description	RELAY GEN PURPOSE DPDT 10A 24V
Datasheets:	8536681001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3995 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3995 pcs

Reference Price (In US Dollars)

1 pcs: $7.756

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.756

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8536681001

Part Number	8536681001	Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE DPDT 10A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3995 pcs	Data sheet	8536681001.pdf
Turn On Voltage (Max)	18 VAC	Turn Off Voltage (Min)	3.6 VAC
Termination Style	Spring Terminal	Switching Voltage	250VAC - Max
Series	PRZ	Relay Type	General Purpose with Socket
Packaging	Bulk	Operating Temperature	-40°C ~ 50°C
Mounting Type	DIN Rail	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	LED Indicator
Detailed Description	General Purpose with Socket Relay DPDT (2 Form C) 24VAC Coil DIN Rail	Contact Rating (Current)	10A
Contact Material	-	Contact Form	DPDT (2 Form C)
Coil Voltage	24VAC	Coil Type	Non Latching
Coil Resistance	350 Ohms	Coil Power	0.8 VA
Coil Current	30.5mA
