Weidmuller

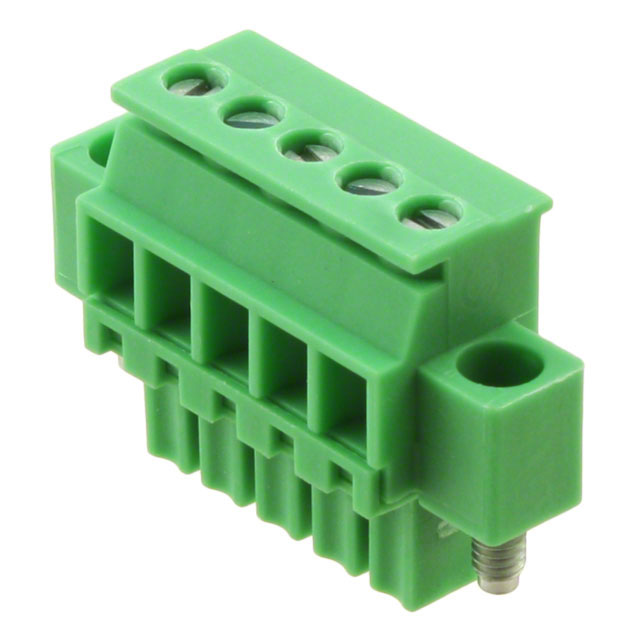

| Part Number | 1799200000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 5POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18739 pcs | Data sheet | 1799200000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Omnimate BC | Screw Size | M2 |
| Positions Per Level | 5 | Plug Wire Entry | 270° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 281-1996 BL3.81/5/270F |
Operating Temperature | -50°C ~ 120°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.411" (10.44mm) | Ingress Protection | IP20 |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 270° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 17.5A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
